HooMa의 코딩 성장기

Button 과 serial 통신 program을 이용해서 FAN 제어

(가상의 GUI 상상하여 만들기)

이전다음

01

09:10 - UART란 무엇인가

10:10 - perity 비트 설명

11:10 - UART 기본 코딩 / PC serial 프로그램

13:00 - 수신 인터럽트 사용

14:00 - uart0 파일 만들기

15:00 - GUI 상상하며 송수신 data 받기

16:00 - team project_2 smart 공조기

이전다음

0123456789

09:10 - 초음파 센서 연결

10:10 - UltraSonic driver 제작

11:10 - 동작 및 코드 확인

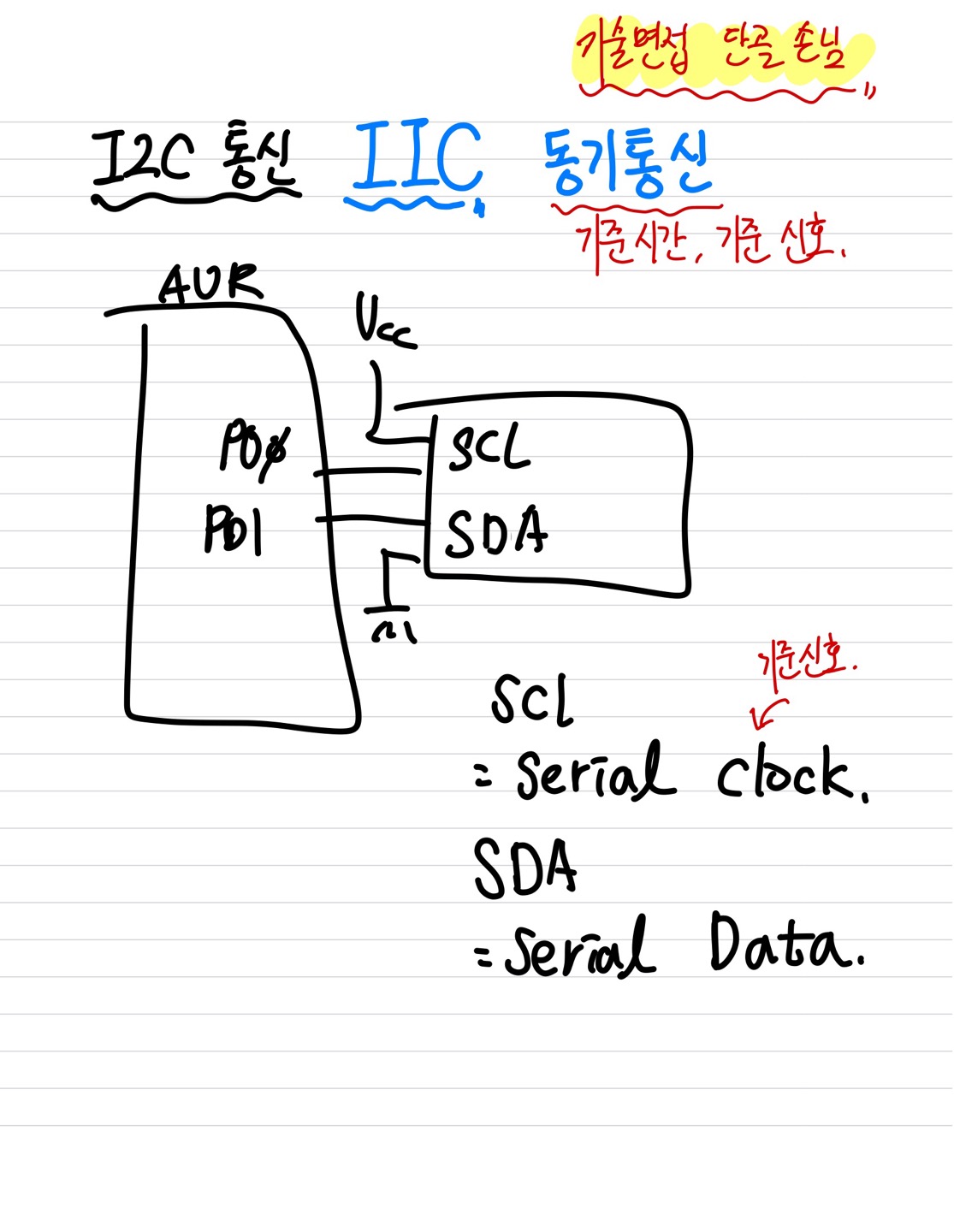

13:00 - I2C 통신 연결

14:00 - I2C 동작 이론

15:00 - I2C_LCD 코드 작성

16:00 - ''

이전다음

01234567891011121314

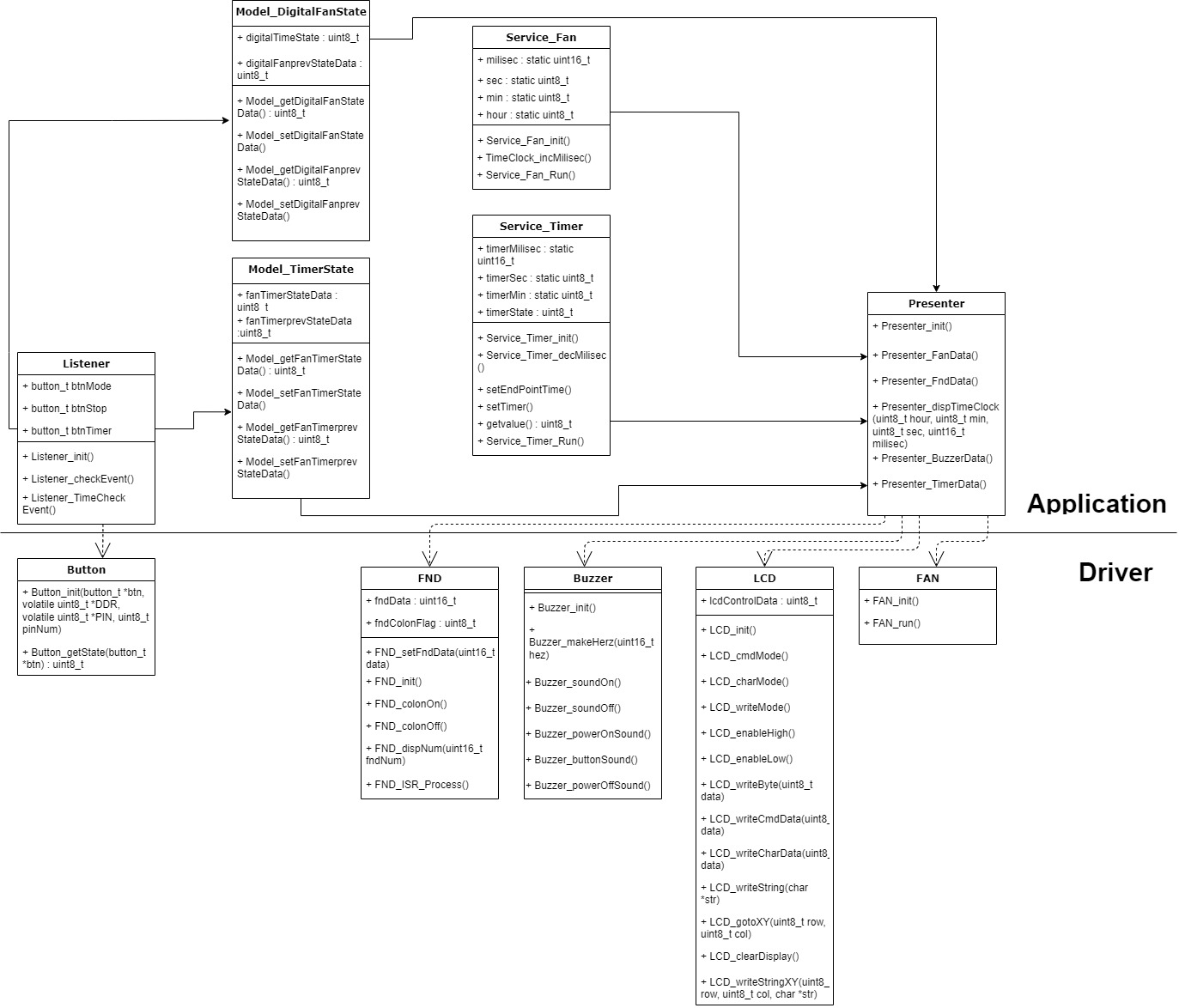

오전 - 에러 분석 및 코드 수정, PPT 작성

오후 - PPT 발표

이전다음

012345678910

과제 : Digital Fan 만들기

09:10 - Power Supply, Osiliscope 설치

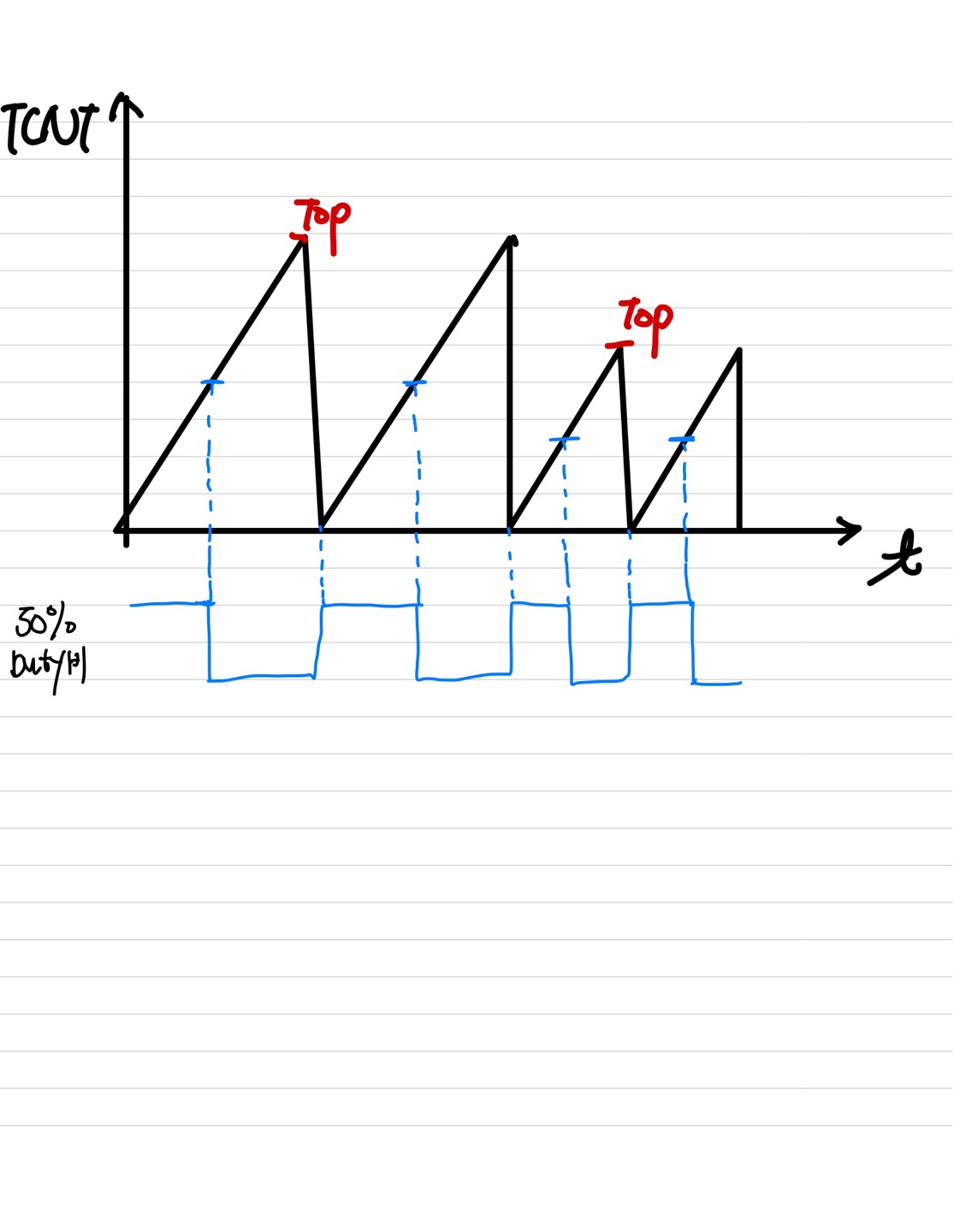

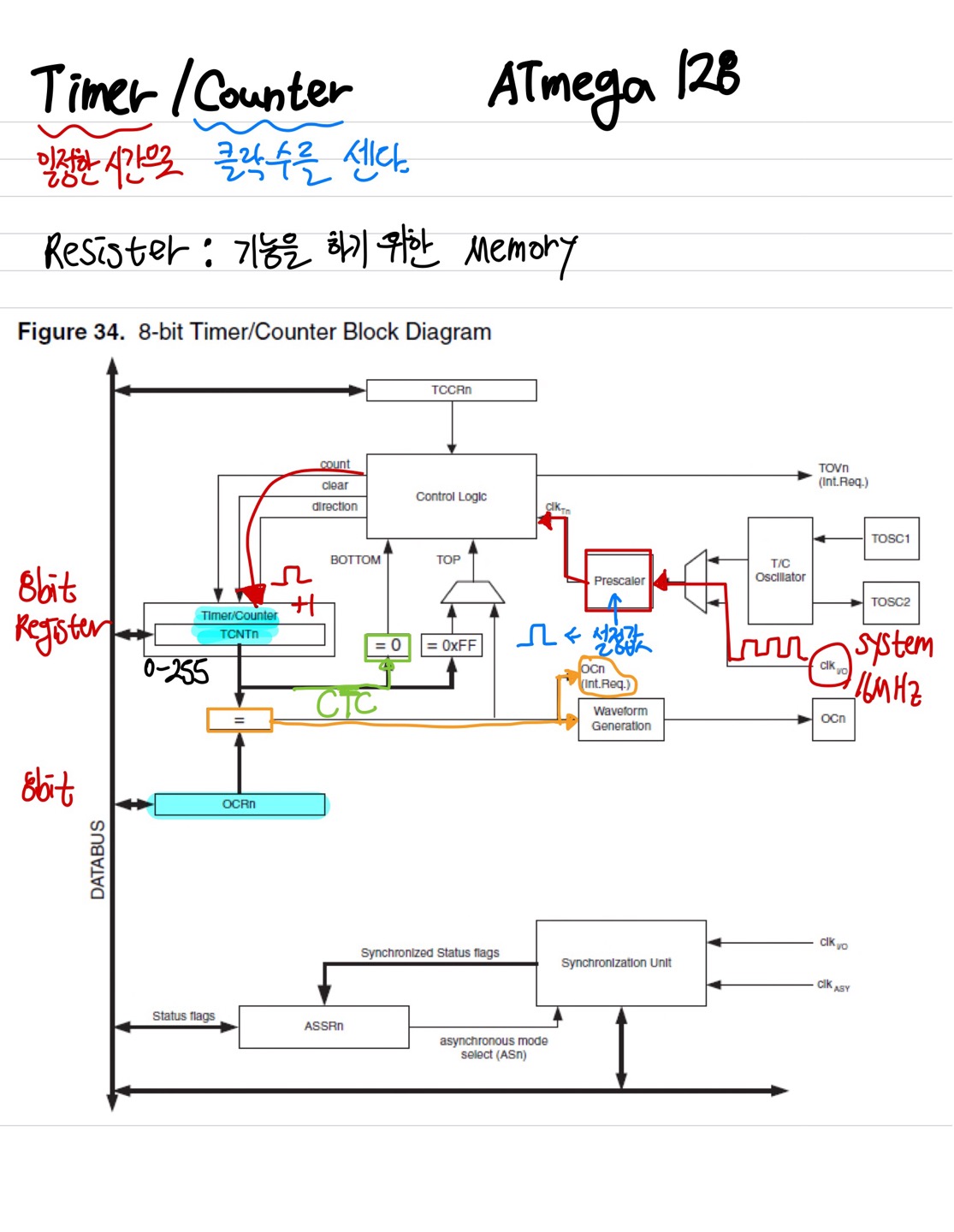

10:10 - FastPWM Mode 설정

11:10 - Osiliscope 를 이용해 출력 Mode 확인

13:00 - frequency 바꾸기 코딩

14:00 - BUZZER 함수 / 피아노 주파수

15:00 - 탁상선풍기 H/W 설치

16:00 - 과제 "Digital Fan 만들기"

​

이전다음

01234567891011121314

09:10 - 코딩 -> 상상력 (의인화)

10:10 - 관련코드 캡슐화 / OOP

11:10 - Litener / Model / Presenter

13:00 - Service_StopWatch

14:00 - Service_TimeClock

15:00 - 부저 H/W 설치

16:00 - 반대표 선정 및 자리 재배치

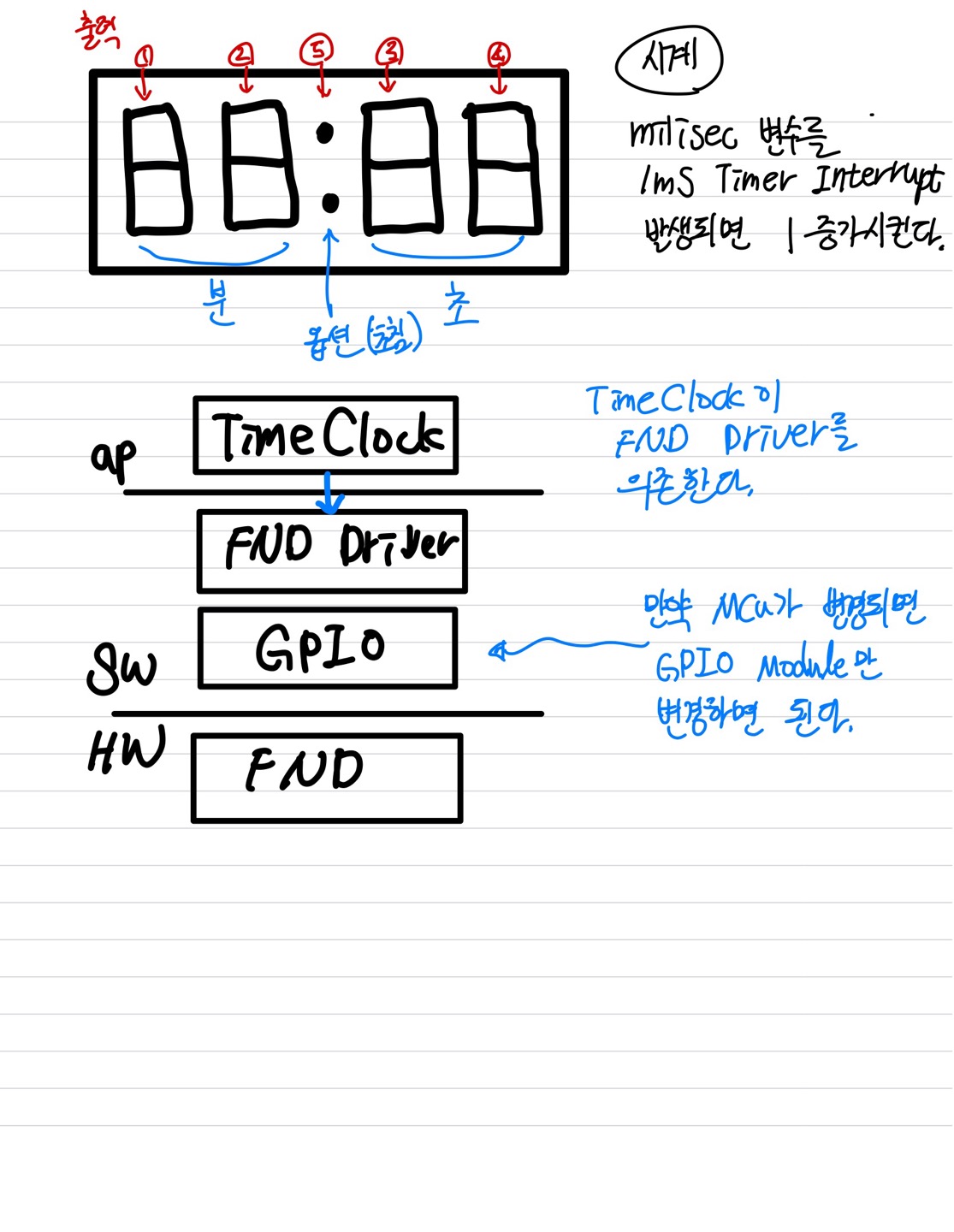

Time_Clock, StopWatch OOP

09:10 - 2/23 복습, 시계 만들기

10:10 - 초침 blink

11:10 - Hour_Min, Sec_Mil

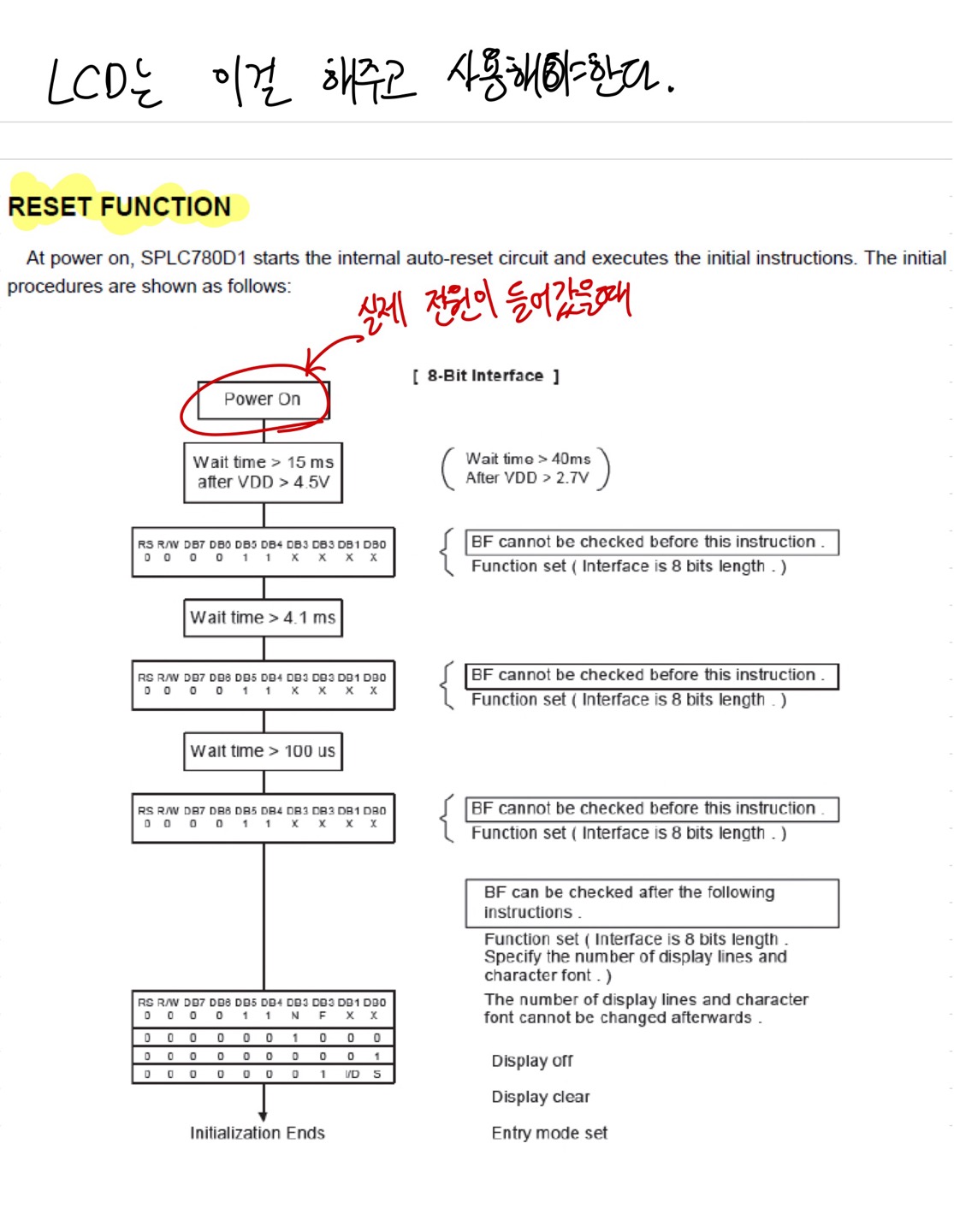

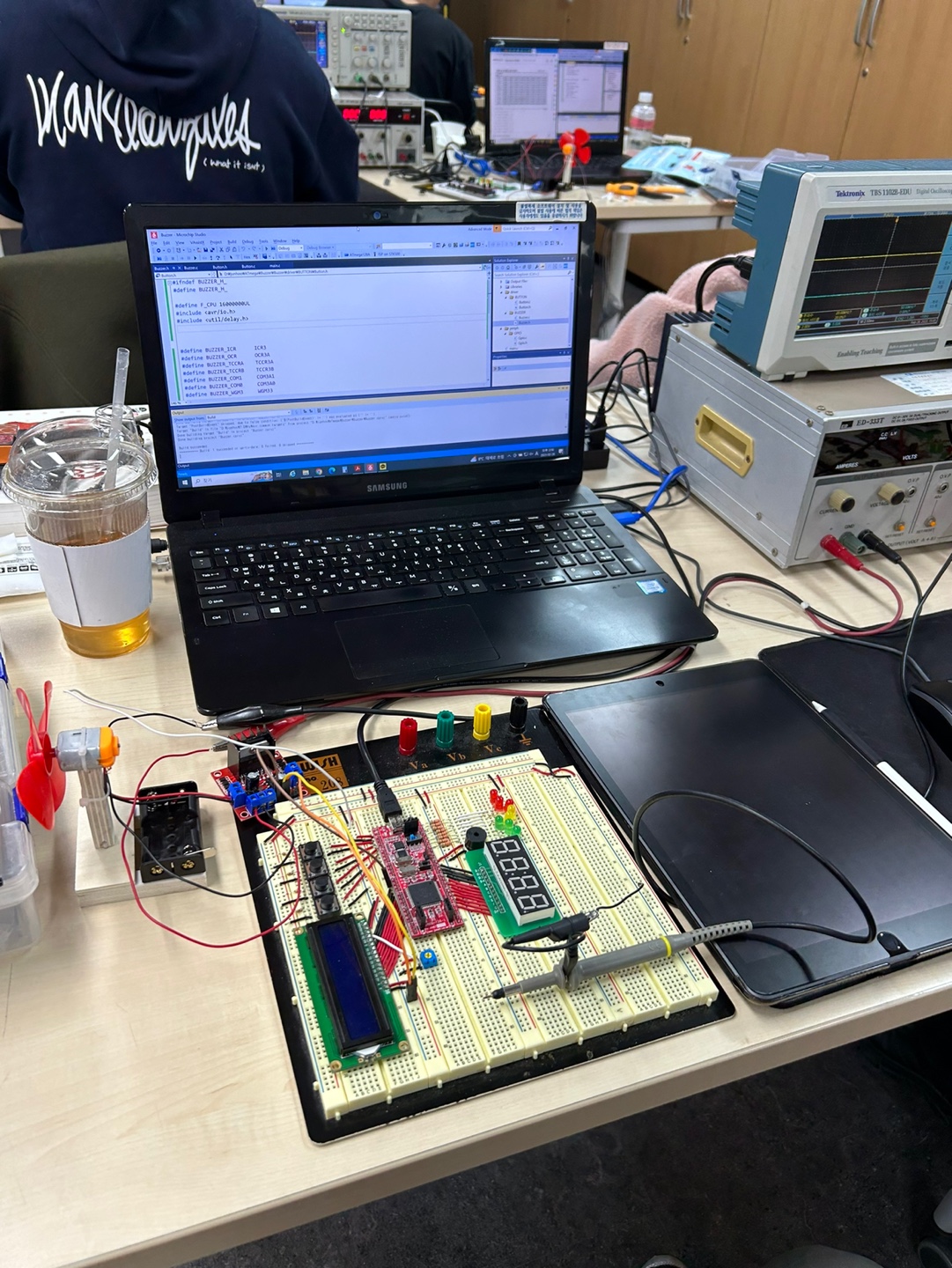

13:00 - LCD H/W 작업(+ 가변저항)

14:00 - LCD 코딩 시작

15:00 - LCD에 HELLO 표시 코딩

16:00 - LCD string 출력 / TimeClock <-LCD 파일

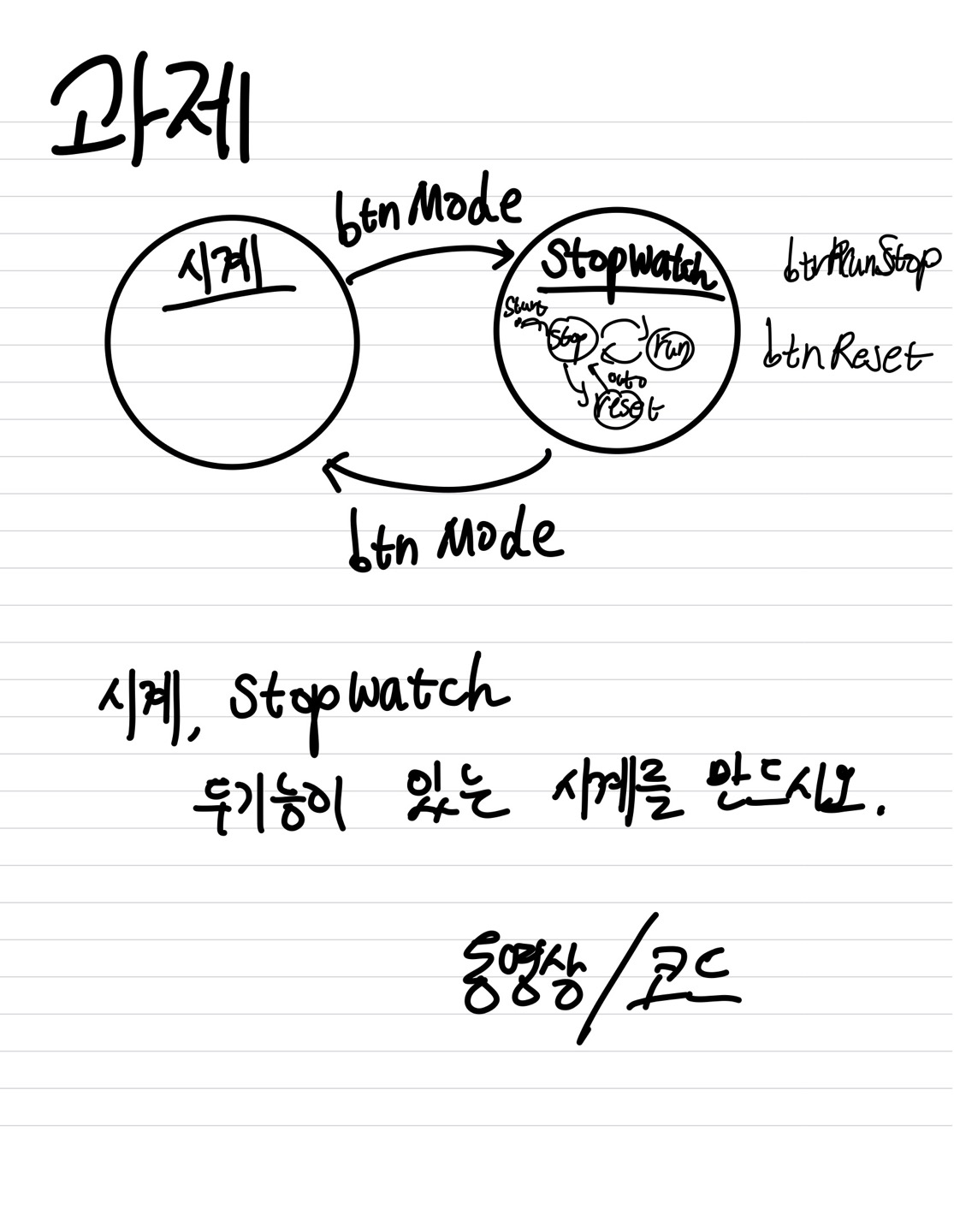

과제 : TimeClock <--> StopWatch 만들기

// main.c

#include <avr/io.h>
#include <stdio.h>
#include <avr/interrupt.h>
#include "ap/TimeClock/TimeClock.h"
#include "driver/FND/FND.h"

ISR(TIMER0_OVF_vect)
{
	FND_ISR_Process();
}

ISR(TIMER2_COMP_vect)  // 1ms period interrupt
{
	TimeClock_incMilisec();
	StopWatch_incMilisec();
}

int main(void)
{
	Watch_init();

	sei(); // global interrupt enable

    while (1)
    {
		Watch_excute();
    }
}

// ap.c

#include "TimeClock.h"

uint16_t stopwatch_milisec;
uint8_t stopwatch_sec;
uint8_t stopwatch_min;
uint8_t stopwatch_hour;
uint16_t milisec;
uint8_t sec;
uint8_t min;
uint8_t hour;



uint8_t stopWatchState;


uint8_t timeClockDispState = HOUR_MIN;
uint8_t watchState = TIMECLOCK;
button_t btnMode, btnWatchMode, btnRunStop, btnReset;


void Watch_init()
{
	FND_init();
	TIM0_INIT();
	TIM2_INIT();
	Button_init(&btnMode, &DDRA, &PINA, 0);
	Button_init(&btnWatchMode, &DDRA, &PINA, 1);
	Button_init(&btnRunStop, &DDRA, &PINA, 2);
	Button_init(&btnReset, &DDRA, &PINA, 3);
	LCD_init();

	TimeClock_init();
	StopWatch_init();
}

void TimeClock_init()
{
	milisec = 0;
	sec = 0;
	min = 0;
	hour = 12;
	timeClockDispState = HOUR_MIN;
}

void StopWatch_init()
{
	stopwatch_milisec = 0;
	stopwatch_sec = 0;
	stopwatch_min = 0;
	stopwatch_hour = 0;
	stopWatchState = STOP;
}

void TimeClock_incMilisec() // 시간 계산 알고리즘
{
	milisec = (milisec + 1) % 1000;
	if(milisec) return;

	sec = (sec + 1) % 60;
	if(sec) return;

	min = (min + 1) % 60;
	if(min) return;

	hour = (hour + 1) % 24;
}

void StopWatch_incMilisec() // 시간 계산 알고리즘
{
	if(stopWatchState == RUN){
		stopwatch_milisec = (stopwatch_milisec + 1) % 1000;
	}
	else{
		return;
	}
	if(stopwatch_milisec) return;

	stopwatch_sec = (stopwatch_sec + 1) % 60;
	if(stopwatch_sec) return;

	stopwatch_min = (stopwatch_min + 1) % 60;
	if(stopwatch_min) return;

	stopwatch_hour = (stopwatch_hour + 1) % 24;
}

void Watch_excute()
{
	Watch_eventButton();
	Watch_runState();

}

void Watch_eventButton()
{

	switch(watchState)
	{
		case TIMECLOCK:
			if(Button_getState(&btnMode) == RELEASED){
			watchState = STOPWATCH;
			LCD_init();
			break;


		case STOPWATCH:
			if(Button_getState(&btnMode) == RELEASED){
			watchState = TIMECLOCK;
			LCD_init();
			break;
			}
		}
	}
}

	void Watch_runState()
	{
		switch(watchState)
		{
			case STOPWATCH:
			stopWatch_eventButton();
			StopWatch_runState();
			break;

			case TIMECLOCK:
			TimeClock_eventButton();
			TimeClock_runState();
			break;
		}
	}

	void TimeClock_eventButton()
	{
		switch(timeClockDispState)
		{
			case HOUR_MIN:
			if(Button_getState(&btnWatchMode) == RELEASED){
				timeClockDispState = SEC_MIL;
			}
			break;

			case SEC_MIL:
			if(Button_getState(&btnWatchMode) == RELEASED){
				timeClockDispState = HOUR_MIN;
			}
			break;

		}
	}

	void TimeClock_runState()
	{
		static uint8_t prevSec = 0xff;

		if(sec != prevSec){
			prevSec = sec;
			char buff[30];

			sprintf(buff, "Time Clock");
			LCD_writeStringXY(0, 0, buff);

			sprintf(buff, "%02d:%02d:%02d", hour, min, sec);
			LCD_writeStringXY(1, 0, buff);

		}

		switch(timeClockDispState)
		{
			case HOUR_MIN:
			TimeClock_dispHourMin();

			break;

			case SEC_MIL:
			TimeClock_dispSecMil();
			break;

		}
	}

	void TimeClock_dispHourMin()
	{
		uint16_t timeClockData;

		if(milisec < 500) FND_colonOn();
		else FND_colonOff();

		timeClockData = (hour * 100) + min;
		FND_setFndData(timeClockData);

	}

	void TimeClock_dispSecMil()
	{
		uint16_t timeClockData;

		if((milisec % 100) < 50) FND_colonOn();
		else FND_colonOff();

		timeClockData = (sec * 100) + (milisec / 10);
		FND_setFndData(timeClockData);
	}

	void stopWatch_eventButton()
	{
		switch(stopWatchState)
		{
			case STOP:
			if(Button_getState(&btnRunStop) == ACT_PUSHED){
				stopWatchState = RUN;
			}
			else if(Button_getState(&btnReset) == ACT_PUSHED){
				stopWatchState = RESET;
			}
			break;

			case RUN:
			if(Button_getState(&btnRunStop) == ACT_PUSHED){
				stopWatchState = STOP;
			}
			break;

			case RESET:
			stopWatchState = STOP;
			break;
		}
	}

	void StopWatch_runState()
	{
		uint16_t stopWatchData;
		static uint8_t prevSec = 0xff;

		{
			prevSec = stopwatch_sec;
			char buff[30];

			sprintf(buff, "Stop Watch");
			LCD_writeStringXY(0, 0, buff);

			sprintf(buff, "%02d:%02d:%03d", stopwatch_min, stopwatch_sec, stopwatch_milisec);
			LCD_writeStringXY(1, 0, buff);

		}

		if(stopWatchState == RESET){

			stopwatch_milisec = 0;
			stopwatch_sec = 0;
			stopwatch_min = 0;
			stopwatch_hour = 0;

		}
		stopWatchData = (stopwatch_min%10 * 1000) + (stopwatch_sec*10) + (stopwatch_milisec/100);
		FND_setFndData(stopWatchData);
	}
